DGVTransform Class Reference

Interface class that Binds all the transform classes together for usage with Qt constructs such as Images and Tables. More...

#include <DGVTransform.h>

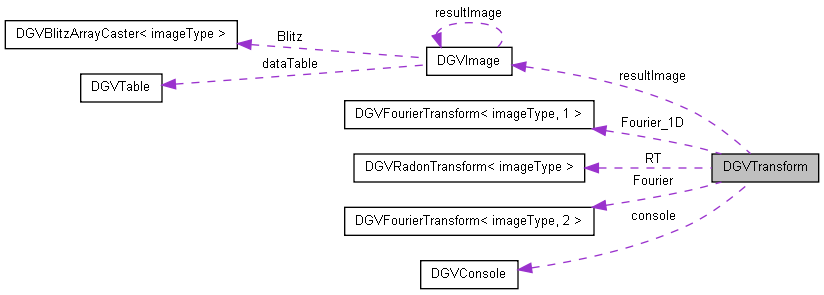

Collaboration diagram for DGVTransform:

List of all members.

Signals
void	resultAvailable (DGVImage *)
	Send signal that Resultant image is available for showing.
void	resultAvailable (Array< imageType, 1 >, QString)
	Send signal that Resultant image is available for showing.
void	resultAvailable (Array< imageType, 2 >, QString)
	Send signal that Resultant image is available for showing.
void	resultAvailable_1D (Array< imageType, 2 >, QString)
	Send signal that Resultant image is available for showing. For a set of 1D data.
void	resultAvailable (Array< complex< imageType >, 1 >, QString)
	Send signal that Resultant image is available for showing.
void	resultAvailable (Array< complex< imageType >, 2 >, QString)
	Send signal that Resultant image is available for showing.
void	resultAvailable_1D (Array< complex< imageType >, 2 >, QString)
	Send signal that Resultant image is available for showing. For a set of 1D data.
Public Member Functions
	DGVTransform (QObject *parent=0)
virtual	~DGVTransform ()
void	setName (QString newName)
	Name of the operation. Doesn't effect transforms only for users reference.
QString	getName ()
	Returns the name of the operation. The name doesn't effect transforms only for users reference.
Discrete Radon Transforms
void	frt (DGVImage *image)
	Conducts the FRT of an image. Sends signal with resultant image. DISABLED.
void	frt (Array< imageType, 2 > &image)
	Conducts the FRT of an image. Sends signal with resultant image.
void	ifrt (DGVImage *bins)
	Conducts the inverse FRT of an image. Sends signal with resultant image. DISABLED.
void	ifrt (Array< imageType, 2 > &bins)
	Conducts the inverse FRT of an image. Sends signal with resultant image.
void	ifrtUnscaled (DGVImage *image)
	Conducts the inverse FRT of an image without dividing by p. Sends signal with resultant image. DISABLED.
void	ifrtUnscaled (Array< imageType, 2 > &bins)
	Conducts the inverse FRT of an image without dividing by p. Sends signal with resultant image.
Constructors
void	fft (Array< complex< imageType >, 2 > &image)
	Conducts the FFT of an image. Sends signal with resultant image.
void	ifft (Array< complex< imageType >, 2 > &kSpace)
	Conducts the inverse FFT of an image. Sends signal with resultant image.
void	fft_real (Array< imageType, 2 > &image)
	Conducts the FFT of an image. Sends signal with resultant image.
void	ifft_real (Array< complex< imageType >, 2 > &kSpace)
	Conducts the inverse FFT of an image. Sends signal with resultant image.
void	fft_1D (Array< complex< imageType >, 1 > &image)
	Conducts the 1D FFT of an image. Sends signal with resultant image.
void	fft_1D (Array< complex< imageType >, 2 > &image)
	Conducts the 1D FFT of an image. Sends signal with resultant image. Not multi-threaded.
void	ifft_1D (Array< complex< imageType >, 1 > &kSpace)
	Conducts the inverse 1D FFT of an image. Sends signal with resultant image.
void	ifft_1D (Array< complex< imageType >, 2 > &kSpace)
	Conducts the inverse 1D FFT of an image. Sends signal with resultant image. Not multi-threaded.
void	fft_real_1D (Array< imageType, 1 > &image)
	Conducts the real 1D FFT of an image. Sends signal with resultant image.
void	fft_real_1D (Array< imageType, 2 > &image)
	Conducts the real 1D FFT of an image. Sends signal with resultant image. Not multi-threaded.
void	ifft_real_1D (Array< complex< imageType >, 1 > &kSpace)
	Conducts the real inverse 1D FFT of an image. Sends signal with resultant image.
void	ifft_real_1D (Array< complex< imageType >, 2 > &kSpace)
	Conducts the real inverse 1D FFT of an image. Sends signal with resultant image. Not multi-threaded.
void	radonSlices (Array< complex< imageType >, 2 > &kSpace)
	Extracts the Radon slices from an image. Sends signal with resultant image.
void	radonSlices (Array< imageType, 2 > &kSpace)
	Extracts the Radon slices from an image. Sends signal with resultant image.
Options
void	reset ()
	Reset internal transform information.
void	shiftDC (Array< imageType, 2 > &kSpace)
	Shift the DC in in array.
void	shiftDC (Array< complex< imageType >, 2 > &kSpace)
	Shift the DC in in array.
void	normalise (Array< imageType, 2 > &kSpace)
	Normalise the array.
void	normalise (Array< complex< imageType >, 2 > &kSpace)
	Normalise the array.
void	alwaysWaitTillComplete (bool waitTillComplete)
	Reset internal transform information.
DGVImage *	getImageResult ()
	Return image result if image was passed in for transform.
void	setConsole (DGVConsole *newConsole)
	Assigns a console for message output. You should set this before calling data members to ensure messages reach the console (if one is present).
Protected Member Functions
void	run ()
	Run the transform in thread.
Protected Attributes
QMutex	mutex
QWaitCondition	condition
bool	abort
bool	alwaysWait
	Always wait till the transform is done and dont run in multi-task thread.
bool	consoleAssigned
	Console attached?
QString	name
	Name of transform operation for users reference. Doesn't effect actual transforms.
transformType	transform
	Which transform to do so it can be run in thread.
Array< imageType, 1 > *	inData_1D
	Pointer to data to transform.
Array< imageType, 1 > *	outData_1D
	Pointer to the result of the transform.
Array< imageType, 2 > *	inData
	Pointer to data to transform.
Array< imageType, 2 > *	outData
	Pointer to the result of the transform.
Array< complex< imageType >, 1 > *	inComplexData_1D
	Pointer to complex data to transform.
Array< complex< imageType >, 1 > *	outComplexData_1D
	Pointer to the complex result of the transform.
Array< complex< imageType >, 2 > *	inComplexData
	Pointer to complex data to transform.
Array< complex< imageType >, 2 > *	outComplexData
	Pointer to the complex result of the transform.
Array< complex< imageType >, 2 >	fftSpace
	FFT Bin values for transforms.
Array< imageType, 2 >	frtSpace
	FRT Bin values for transforms.
Array< complex< imageType >, 1 >	fftSpace_1D
	1D FFT Bin values for transforms
Array< imageType, 1 >	frtSpace_1D
	1D FRT Bin values for transforms
DGVRadonTransform< imageType >	RT
	Radon Transforms.
DGVFourierTransform< imageType, 1 >	Fourier_1D
	Fourier Transforms.
DGVFourierTransform< imageType, 2 >	Fourier
	Fourier Transforms.
DGVImage *	resultImage
	Pointer to result.
DGVConsole *	console
	Console for message output.

---

Detailed Description

Interface class that Binds all the transform classes together for usage with Qt constructs such as Images and Tables.

This transform wrapper runs transforms (FFT etc.) in threads.

Todo:

Multi-threading: Cannot handle multi-threading. Enforce "wait" until transform is complete.

Author:

Shekhar S. Chandra, 2008-2009

Definition at line 46 of file DGVTransform.h.

---

Constructor & Destructor Documentation

DGVTransform::DGVTransform

(

QObject *

parent = 0

)

Definition at line 24 of file DGVTransform.cpp.

DGVTransform::~DGVTransform

(

)

[virtual]

Definition at line 29 of file DGVTransform.cpp.

---

Member Function Documentation

DGVTransform::alwaysWaitTillComplete

(

bool

waitTillComplete

)

[inline]

Reset internal transform information.

Definition at line 210 of file DGVTransform.h.

void DGVTransform::fft

(

Array< complex< imageType >, 2 > &


)

Conducts the FFT of an image. Sends signal with resultant image.

Definition at line 157 of file DGVTransform.cpp.

void DGVTransform::fft_1D

(

Array< complex< imageType >, 1 > &


)

Conducts the 1D FFT of an image. Sends signal with resultant image.

Definition at line 233 of file DGVTransform.cpp.

void DGVTransform::fft_1D

(

Array< complex< imageType >, 2 > &


)

Conducts the 1D FFT of an image. Sends signal with resultant image. Not multi-threaded.

Definition at line 252 of file DGVTransform.cpp.

void DGVTransform::fft_real

(

Array< imageType, 2 > &


)

Conducts the FFT of an image. Sends signal with resultant image.

Definition at line 195 of file DGVTransform.cpp.

void DGVTransform::fft_real_1D

(

Array< imageType, 1 > &


)

Conducts the real 1D FFT of an image. Sends signal with resultant image.

Definition at line 311 of file DGVTransform.cpp.

void DGVTransform::fft_real_1D

(

Array< imageType, 2 > &


)

Conducts the real 1D FFT of an image. Sends signal with resultant image. Not multi-threaded.

Definition at line 330 of file DGVTransform.cpp.

void DGVTransform::frt

(

Array< imageType, 2 > &


)

Conducts the FRT of an image. Sends signal with resultant image.

Definition at line 72 of file DGVTransform.cpp.

void DGVTransform::frt

(

DGVImage *


)

Conducts the FRT of an image. Sends signal with resultant image. DISABLED.

< Bin values for transforms

Definition at line 42 of file DGVTransform.cpp.

DGVTransform::getImageResult

(

)

[inline]

Return image result if image was passed in for transform.

Definition at line 216 of file DGVTransform.h.

DGVTransform::getName

(

)

[inline]

Returns the name of the operation. The name doesn't effect transforms only for users reference.

Definition at line 64 of file DGVTransform.h.

void DGVTransform::ifft

(

Array< complex< imageType >, 2 > &

kSpace

)

Conducts the inverse FFT of an image. Sends signal with resultant image.

Definition at line 176 of file DGVTransform.cpp.

void DGVTransform::ifft_1D

(

Array< complex< imageType >, 2 > &

kSpace

)

Conducts the inverse 1D FFT of an image. Sends signal with resultant image. Not multi-threaded.

Definition at line 291 of file DGVTransform.cpp.

void DGVTransform::ifft_1D

(

Array< complex< imageType >, 1 > &

kSpace

)

Conducts the inverse 1D FFT of an image. Sends signal with resultant image.

Definition at line 272 of file DGVTransform.cpp.

void DGVTransform::ifft_real

(

Array< complex< imageType >, 2 > &

kSpace

)

Conducts the inverse FFT of an image. Sends signal with resultant image.

Definition at line 214 of file DGVTransform.cpp.

void DGVTransform::ifft_real_1D

(

Array< complex< imageType >, 1 > &

kSpace

)

Conducts the real inverse 1D FFT of an image. Sends signal with resultant image.

Definition at line 351 of file DGVTransform.cpp.

void DGVTransform::ifft_real_1D

(

Array< complex< imageType >, 2 > &

kSpace

)

Conducts the real inverse 1D FFT of an image. Sends signal with resultant image. Not multi-threaded.

Definition at line 370 of file DGVTransform.cpp.

void DGVTransform::ifrt

(

DGVImage *

bins

)

Conducts the inverse FRT of an image. Sends signal with resultant image. DISABLED.

Todo:

Broken

< Bin values for transforms

Definition at line 95 of file DGVTransform.cpp.

void DGVTransform::ifrt

(

Array< imageType, 2 > &

bins

)

Conducts the inverse FRT of an image. Sends signal with resultant image.

Definition at line 109 of file DGVTransform.cpp.

void DGVTransform::ifrtUnscaled

(

Array< imageType, 2 > &

bins

)

Conducts the inverse FRT of an image without dividing by p. Sends signal with resultant image.

Definition at line 140 of file DGVTransform.cpp.

void DGVTransform::ifrtUnscaled

(

DGVImage *


)

Conducts the inverse FRT of an image without dividing by p. Sends signal with resultant image. DISABLED.

Todo:

Broken

< Bin values for transforms

Definition at line 126 of file DGVTransform.cpp.

DGVTransform::normalise

(

Array< complex< imageType >, 2 > &

kSpace

)

[inline]

Normalise the array.

Definition at line 204 of file DGVTransform.h.

DGVTransform::normalise

(

Array< imageType, 2 > &

kSpace

)

[inline]

Normalise the array.

Definition at line 198 of file DGVTransform.h.

void DGVTransform::radonSlices

(

Array< complex< imageType >, 2 > &

kSpace

)

Extracts the Radon slices from an image. Sends signal with resultant image.

Definition at line 391 of file DGVTransform.cpp.

void DGVTransform::radonSlices

(

Array< imageType, 2 > &

kSpace

)

Extracts the Radon slices from an image. Sends signal with resultant image.

Definition at line 410 of file DGVTransform.cpp.

void DGVTransform::reset

(

)

Reset internal transform information.

Definition at line 429 of file DGVTransform.cpp.

void DGVTransform::resultAvailable

(

DGVImage *

_t1

)

[signal]

Send signal that Resultant image is available for showing.

Definition at line 99 of file moc_DGVTransform.cpp.

void DGVTransform::resultAvailable	(	Array< imageType, 2 >	_t1,
		QString	_t2
	)			[signal]

Send signal that Resultant image is available for showing.

Definition at line 113 of file moc_DGVTransform.cpp.

void DGVTransform::resultAvailable	(	Array< complex< imageType >, 1 >	_t1,
		QString	_t2
	)			[signal]

Send signal that Resultant image is available for showing.

Definition at line 127 of file moc_DGVTransform.cpp.

void DGVTransform::resultAvailable	(	Array< imageType, 1 >	_t1,
		QString	_t2
	)			[signal]

Send signal that Resultant image is available for showing.

Definition at line 106 of file moc_DGVTransform.cpp.

void DGVTransform::resultAvailable	(	Array< complex< imageType >, 2 >	_t1,
		QString	_t2
	)			[signal]

Send signal that Resultant image is available for showing.

Definition at line 134 of file moc_DGVTransform.cpp.

void DGVTransform::resultAvailable_1D	(	Array< complex< imageType >, 2 >	_t1,
		QString	_t2
	)			[signal]

Send signal that Resultant image is available for showing. For a set of 1D data.

Definition at line 141 of file moc_DGVTransform.cpp.

void DGVTransform::resultAvailable_1D	(	Array< imageType, 2 >	_t1,
		QString	_t2
	)			[signal]

Send signal that Resultant image is available for showing. For a set of 1D data.

Definition at line 120 of file moc_DGVTransform.cpp.

void DGVTransform::run

(

)

[protected]

Run the transform in thread.

< Process Qt Events First

2D FFTs

1D FFTs

Slicing

FRTs

< Process Qt Events

Put to sleep

Definition at line 456 of file DGVTransform.cpp.

void DGVTransform::setConsole

(

DGVConsole *

newConsole

)

Assigns a console for message output. You should set this before calling data members to ensure messages reach the console (if one is present).

Definition at line 445 of file DGVTransform.cpp.

DGVTransform::setName

(

QString

newName

)

[inline]

Name of the operation. Doesn't effect transforms only for users reference.

Definition at line 58 of file DGVTransform.h.

DGVTransform::shiftDC

(

Array< imageType, 2 > &

kSpace

)

[inline]

Shift the DC in in array.

Definition at line 186 of file DGVTransform.h.

DGVTransform::shiftDC

(

Array< complex< imageType >, 2 > &

kSpace

)

[inline]

Shift the DC in in array.

Definition at line 192 of file DGVTransform.h.

---

Member Data Documentation

bool DGVTransform::abort [protected]

Definition at line 266 of file DGVTransform.h.

bool DGVTransform::alwaysWait [protected]

Always wait till the transform is done and dont run in multi-task thread.

Definition at line 267 of file DGVTransform.h.

QWaitCondition DGVTransform::condition [protected]

Definition at line 265 of file DGVTransform.h.

DGVConsole* DGVTransform::console [protected]

Console for message output.

Definition at line 292 of file DGVTransform.h.

bool DGVTransform::consoleAssigned [protected]

Console attached?

Definition at line 268 of file DGVTransform.h.

Array<complex<imageType>,2> DGVTransform::fftSpace [protected]

FFT Bin values for transforms.

Definition at line 281 of file DGVTransform.h.

Array<complex<imageType>,1> DGVTransform::fftSpace_1D [protected]

1D FFT Bin values for transforms

Definition at line 284 of file DGVTransform.h.

DGVFourierTransform<imageType,2> DGVTransform::Fourier [protected]

Fourier Transforms.

Definition at line 289 of file DGVTransform.h.

DGVFourierTransform<imageType,1> DGVTransform::Fourier_1D [protected]

Fourier Transforms.

Definition at line 288 of file DGVTransform.h.

Array<imageType,2> DGVTransform::frtSpace [protected]

FRT Bin values for transforms.

Definition at line 282 of file DGVTransform.h.

Array<imageType,1> DGVTransform::frtSpace_1D [protected]

1D FRT Bin values for transforms

Definition at line 285 of file DGVTransform.h.

Array<complex<imageType>,2>* DGVTransform::inComplexData [protected]

Pointer to complex data to transform.

Definition at line 278 of file DGVTransform.h.

Array<complex<imageType>,1>* DGVTransform::inComplexData_1D [protected]

Pointer to complex data to transform.

Definition at line 276 of file DGVTransform.h.

Array<imageType,2>* DGVTransform::inData [protected]

Pointer to data to transform.

Definition at line 274 of file DGVTransform.h.

Array<imageType,1>* DGVTransform::inData_1D [protected]

Pointer to data to transform.

Definition at line 272 of file DGVTransform.h.

QMutex DGVTransform::mutex [protected]

Definition at line 264 of file DGVTransform.h.

QString DGVTransform::name [protected]

Name of transform operation for users reference. Doesn't effect actual transforms.

Definition at line 269 of file DGVTransform.h.

Array<complex<imageType>,2>* DGVTransform::outComplexData [protected]

Pointer to the complex result of the transform.

Definition at line 279 of file DGVTransform.h.

Array<complex<imageType>,1>* DGVTransform::outComplexData_1D [protected]

Pointer to the complex result of the transform.

Definition at line 277 of file DGVTransform.h.

Array<imageType,2>* DGVTransform::outData [protected]

Pointer to the result of the transform.

Definition at line 275 of file DGVTransform.h.

Array<imageType,1>* DGVTransform::outData_1D [protected]

Pointer to the result of the transform.

Definition at line 273 of file DGVTransform.h.

DGVImage* DGVTransform::resultImage [protected]

Pointer to result.

Definition at line 291 of file DGVTransform.h.

DGVRadonTransform<imageType> DGVTransform::RT [protected]

Radon Transforms.

Definition at line 287 of file DGVTransform.h.

transformType DGVTransform::transform [protected]

Which transform to do so it can be run in thread.

Definition at line 271 of file DGVTransform.h.

---

The documentation for this class was generated from the following files:

• include/DGVTransform.h
• moc/moc_DGVTransform.cpp
• src/DGVTransform.cpp
