This class represents the DGV Surface Plot Display object using VTK. More...

#include <DGVSurfacePlotVTK.h>

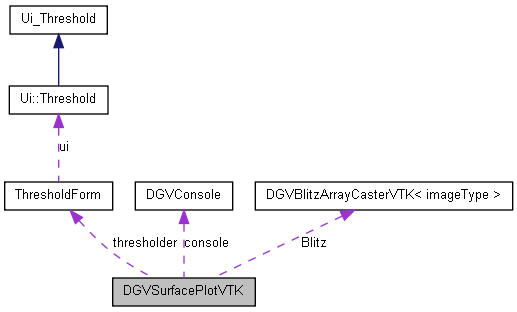

Collaboration diagram for DGVSurfacePlotVTK:

[legend]

Public Slots
void	refresh ()
	Reload the data and rest the camera and axes.
void	renameData ()
	Renames the surfaces data.
void	scale ()
	Ask for scale factor.
void	threshold ()
	Ask for thresholding.
void	thresholdUpper (double value)
	Apply a upper Thresholding.
void	thresholdLower (double value)
	Apply a lower thresholding.
void	xLabel ()
	Ask for x-label.
void	yLabel ()
	Ask for y-label.
void	zLabel ()
	Ask for z-label.
void	background ()
	Ask for rgb values and change background to that colour.
void	axesProperties ()
	Ask for rgb values and change axes to that colour.
void	updateDisplayData ()
void	toggleAxesAsClosestTriad ()
	Toggles if the axes are display with closest triad display mode.
void	toggleAntiAliasing ()
	Toggles the Anti-Aliasing in display. May slow rendering if enabled.
void	save ()
	Saves the data.
void	updateSlice ()
	Updates slice data, normally triggered by timers for animations.
void	firstSlice ()
	Updates slice count to the first slice.
void	pauseAnimation ()
	Pauses and Unpauses animations.
Public Member Functions
	DGVSurfacePlotVTK (QWidget *parent=0)
	The standard constructor.
virtual	~DGVSurfacePlotVTK ()
	The standard destructor.
void	setName (QString filename)
	Set the name of the plot.
void	setData (Array< imageType, 2 > data)
	Set the data to be plotted.
void	SetInput (vtkImageData *newData)
	Set the data to be plotted, using VTK syntax.
void	setScaleFactor (double factor)
	Set the scale factor for the surface plot.
void	autoScaleSurface (bool autoScale)
	Auto scale the z-axis corresponding to the surface of the plot?
void	setThresholdLevels (double low, double high)
	Set the thresholding on the data plotted. (To be implemented).
void	setXLabel (QString text)
	Set the label of x-axis.
void	setYLabel (QString text)
	Set the label of y-axis.
void	setZLabel (QString text)
	Set the label of z-axis.
void	setAxesAsClosestTriad ()
	Set the axes display method as the closest triad to viewer.
void	setAxesAsOuterEdges ()
void	setBackground (double r, double g, double b)
	Sets the background of the renderer to colour (r,g,b).
bool	saveVTI (const QString filename)
	Saves data using VTK XML Image (VTI) format with stored filename.
void	generatePlot ()
	Generates a surface plot from the data provided.
void	generatePlotMergedWith (vtkImageData *image)
	Generates a surface plot from the data provided and merged with image.
void	generateAxes ()
	Generates and enables the axes on the plot.
void	animateFromSlices (Array< imageType, 3 > *data, int interval)
	Animates a surface plot from each slice of a 3D data set.
QString	strippedName ()
	Returns the stripped (path removed) name of the plot.
QString	strippedNamePrefix ()
	Returns the stripped (path removed) name of the plot with "SPlot" prefix.
Array< imageType, 2 > &	data ()
	Returns the data in Blitz array form.
void	setConsole (DGVConsole *newConsole)
	Assigns a console for message output.
void	setVerboseMode (bool verbose)
	Verbose mode for message output.
Protected Member Functions
void	setupEvents ()
	Executes common events setup code.
void	setupSurface ()
	Executes common code for setting up the surface in VTK.
void	contextMenuEvent (QContextMenuEvent *event)
	The context menu setup member.
void	printError (QString msg)
	Error message wrapper for console.
void	printWarning (QString msg)
	Warning message wrapper for console.
void	printInfo (QString msg)
	Info message wrapper for console.
void	createActions ()
	Create actions for internal use.
void	createConnections ()
	Create connections for internal use.
Protected Attributes
bool	loaded
	Data loaded?
bool	generated
	Plot has been generated?
bool	axisGenerated
	Axis has been generated?
bool	externalData
	External vtkImageData?
bool	verboseMode
	Verbose messaging mode.
bool	consoleAssigned
	Messaging console has been set.
bool	closestTriad
	Flag for closest triad display of axes.
bool	antiAliasing
	Smooth Polygons?
bool	thresholded
	Thresholded data?
bool	autoScaleZ
	Auto Scale the z-axis always?
bool	logScaled
	Used log scale? (If so, reset scale).
bool	animating
	Animation is happening?
bool	pausedAnimation
	Animation is paused?
QString	name
	Name of the plot.
QMenu *	contextMenu
	Context Menu.
QAction *	scaleAct
	Action object for scaling plot.
QAction *	thresholdAct
	Action object for thresholding plot.
QAction *	xLabelAct
	Change x label.
QAction *	yLabelAct
	Change y label.
QAction *	zLabelAct
	Change z label.
QAction *	backgroundAct
	Change background colour?
QAction *	axesAct
	Change axes colour?
QAction *	logAct
	Show logscale?
QAction *	triadAct
	Show triad axes?
QAction *	antiAliasingAct
	Change Anti Aliasing.
QAction *	startAct
	Start Animation for 3D datasets.
QAction *	pauseAct
	Pause Animation for 3D datasets.
QAction *	saveAct
	Saves data as VTI file.
QAction *	refreshAct
	Refreshes window.
QAction *	renameAct
	Renames window.
QAction *	closeAct
	Closes window.
int	bounds [6]
	Bounds of the data.
double	scaling
	Scaling factor.
vtkImageData *	plotData
	Actual data stored as using an image geometry.
DGVBlitzArrayCasterVTK< imageType >	Blitz
	For casting Blitz arrays to and from VTK structures.
Array< imageType, 2 >	plotArray
	Plot data in array form.
Array< imageType, 3 > *	volumeData
	Pointer to volume array, used for animations.
int	currentSlice
	Slice being showm.
DGVConsole *	console
	Console for message output.
ThresholdForm *	thresholder
	Threshold form.
vtkImageLogarithmicScale *	logData
	For log scaling.
vtkImageDataGeometryFilter *	geometry
	Used to create the geometry for a surface plot.
vtkWarpScalar *	warp
	Surface quantifier.
vtkPolyDataNormals *	surfaceNormals
	Normals for the mesh.
vtkPolyDataMapper *	mapper
	Map the data to the surface.
vtkLODActor *	lod
vtkCubeAxesActor2D *	axes
	Axis for plot.
vtkRenderer *	renderer
	Renderer of the plot.
vtkRenderWindow *	renderWin
	Window that controls the renderer.

Detailed Description

This class represents the DGV Surface Plot Display object using VTK.

Author:: Shekhar S. Chandra, 2008-2009

The class displays plot values using OpenGL via the VTK library. The rendering is encapsulated within a QVTK widget. Controls:

Left Mouse (hold): rotate plot.
Wheel: zoom the camera.
Middle Mouse (hold): translate plot.
Right Mouse: context menu and zoom toggle.
Keypress f: fly to the picked point.
Keypress Shift+r: reset the camera view along the current view direction.
Keypress r: reset the zoom to defaults.

Usage Example:

    DGVSurfacePlotVTK *plot = new DGVSurfacePlotVTK;

    plot->setName(name);
    plot->setData(data);
    plot->generatePlot();
    plot->generateAxes();
    plot->show();

Definition at line 73 of file DGVSurfacePlotVTK.h.

Constructor & Destructor Documentation

DGVSurfacePlotVTK::DGVSurfacePlotVTK ( QWidget * parent = 0 )

The standard constructor.

Definition at line 30 of file DGVSurfacePlotVTK.cpp.

DGVSurfacePlotVTK::~DGVSurfacePlotVTK ( ) [virtual]

The standard destructor.

Definition at line 53 of file DGVSurfacePlotVTK.cpp.

Member Function Documentation

void DGVSurfacePlotVTK::animateFromSlices	(	Array< imageType, 3 > *	data,
		int	interval
	)

Animates a surface plot from each slice of a 3D data set.

Definition at line 386 of file DGVSurfacePlotVTK.cpp.

DGVSurfacePlotVTK::autoScaleSurface ( bool autoScale ) [inline]

Auto scale the z-axis corresponding to the surface of the plot?

Definition at line 113 of file DGVSurfacePlotVTK.h.

void DGVSurfacePlotVTK::axesProperties ( ) [slot]

Ask for rgb values and change axes to that colour.

Definition at line 551 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::background ( ) [slot]

Ask for rgb values and change background to that colour.

Definition at line 534 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::contextMenuEvent ( QContextMenuEvent * event ) [protected]

The context menu setup member.

< Only exists for the duration of the context selection

Global Ops

Labels and Options

Setup Toggle Options

Animation Controls

Setup Close action Close

Definition at line 730 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::createActions ( ) [protected]

Create actions for internal use.

Definition at line 834 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::createConnections ( ) [protected]

Create connections for internal use.

Definition at line 842 of file DGVSurfacePlotVTK.cpp.

DGVSurfacePlotVTK::data ( ) [inline]

Returns the data in Blitz array form.

Definition at line 191 of file DGVSurfacePlotVTK.h.

DGVSurfacePlotVTK::firstSlice ( ) [inline, slot]

Updates slice count to the first slice.

Definition at line 290 of file DGVSurfacePlotVTK.h.

void DGVSurfacePlotVTK::generateAxes ( )

Generates and enables the axes on the plot.

Axes

Ensure z-scale is true

Definition at line 310 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::generatePlot ( )

Generates a surface plot from the data provided.

Definition at line 195 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::generatePlotMergedWith ( vtkImageData * image )

Generates a surface plot from the data provided and merged with image.

Todo:: Bug: Using plotData for everything and converting causes crash on destruction.

Todo:: Bug: If values within grid are too large, then surface warp fails. Needs proper scaling.

Todo:: Bug: Colour images dont merge correctly with mono data.

< Align correctly

Definition at line 237 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::pauseAnimation ( ) [slot]

Pauses and Unpauses animations.

Definition at line 722 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::printError ( QString msg ) [protected]

Error message wrapper for console.

Definition at line 795 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::printInfo ( QString msg ) [protected]

Info message wrapper for console.

Definition at line 821 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::printWarning ( QString msg ) [protected]

Warning message wrapper for console.

Definition at line 808 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::refresh ( ) [slot]

Reload the data and rest the camera and axes.

Definition at line 357 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::renameData ( ) [slot]

Renames the surfaces data.

Definition at line 376 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::save ( ) [slot]

Saves the data.

Definition at line 659 of file DGVSurfacePlotVTK.cpp.

bool DGVSurfacePlotVTK::saveVTI ( const QString filename )

Saves data using VTK XML Image (VTI) format with stored filename.

Definition at line 177 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::scale ( ) [slot]

Ask for scale factor.

Definition at line 426 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::setAxesAsClosestTriad ( )

Set the axes display method as the closest triad to viewer.

Set the axes display method as the outer edges from the viewer.

Definition at line 152 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::setAxesAsOuterEdges ( )

Definition at line 160 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::setBackground	(	double	r,
		double	g,
		double	b
	)

Sets the background of the renderer to colour (r,g,b).

Definition at line 168 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::setConsole ( DGVConsole * newConsole )

Assigns a console for message output.

Definition at line 417 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::setData ( Array< imageType, 2 > data )

Set the data to be plotted.

Definition at line 90 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::SetInput ( vtkImageData * newData )

Set the data to be plotted, using VTK syntax.

Definition at line 104 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::setName ( QString filename )

Set the name of the plot.

Definition at line 84 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::setScaleFactor ( double factor )

Set the scale factor for the surface plot.

Definition at line 115 of file DGVSurfacePlotVTK.cpp.

DGVSurfacePlotVTK::setThresholdLevels	(	double	low,
		double	high
	)

Set the thresholding on the data plotted. (To be implemented).

void DGVSurfacePlotVTK::setupEvents ( ) [protected]

Executes common events setup code.

Unbind the right mouse button events as Qt uses context menu.

Definition at line 676 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::setupSurface ( ) [protected]

Executes common code for setting up the surface in VTK.

Todo:: Bug: If values within grid are too large, then surface warp fails. Needs proper scaling.

Definition at line 683 of file DGVSurfacePlotVTK.cpp.

DGVSurfacePlotVTK::setVerboseMode ( bool verbose ) [inline]

Verbose mode for message output.

Definition at line 202 of file DGVSurfacePlotVTK.h.

void DGVSurfacePlotVTK::setXLabel ( QString text )

Set the label of x-axis.

Definition at line 128 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::setYLabel ( QString text )

Set the label of y-axis.

Definition at line 136 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::setZLabel ( QString text )

Set the label of z-axis.

Definition at line 144 of file DGVSurfacePlotVTK.cpp.

QString DGVSurfacePlotVTK::strippedName ( )

Returns the stripped (path removed) name of the plot.

Definition at line 407 of file DGVSurfacePlotVTK.cpp.

QString DGVSurfacePlotVTK::strippedNamePrefix ( )

Returns the stripped (path removed) name of the plot with "SPlot" prefix.

Definition at line 412 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::threshold ( ) [slot]

Ask for thresholding.

Definition at line 437 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::thresholdLower ( double value ) [slot]

Apply a lower thresholding.

Definition at line 481 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::thresholdUpper ( double value ) [slot]

Apply a upper Thresholding.

Definition at line 457 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::toggleAntiAliasing ( ) [slot]

Toggles the Anti-Aliasing in display. May slow rendering if enabled.

Definition at line 641 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::toggleAxesAsClosestTriad ( ) [slot]

Toggles if the axes are display with closest triad display mode.

Definition at line 632 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::updateDisplayData ( ) [slot]

Definition at line 582 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::updateSlice ( ) [slot]

Updates slice data, normally triggered by timers for animations.

Definition at line 711 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::xLabel ( ) [slot]

Ask for x-label.

Definition at line 504 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::yLabel ( ) [slot]

Ask for y-label.

Definition at line 514 of file DGVSurfacePlotVTK.cpp.

void DGVSurfacePlotVTK::zLabel ( ) [slot]

Ask for z-label.

Definition at line 524 of file DGVSurfacePlotVTK.cpp.

Member Data Documentation

bool DGVSurfacePlotVTK::animating [protected]

Animation is happening?

Definition at line 311 of file DGVSurfacePlotVTK.h.

bool DGVSurfacePlotVTK::antiAliasing [protected]

Smooth Polygons?

Definition at line 307 of file DGVSurfacePlotVTK.h.

QAction* DGVSurfacePlotVTK::antiAliasingAct [protected]

Change Anti Aliasing.

Definition at line 327 of file DGVSurfacePlotVTK.h.

bool DGVSurfacePlotVTK::autoScaleZ [protected]

Auto Scale the z-axis always?

Definition at line 309 of file DGVSurfacePlotVTK.h.

vtkCubeAxesActor2D* DGVSurfacePlotVTK::axes [protected]

Axis for plot.

Definition at line 354 of file DGVSurfacePlotVTK.h.

QAction* DGVSurfacePlotVTK::axesAct [protected]

Change axes colour?

Definition at line 324 of file DGVSurfacePlotVTK.h.

bool DGVSurfacePlotVTK::axisGenerated [protected]

Axis has been generated?

Definition at line 302 of file DGVSurfacePlotVTK.h.

QAction* DGVSurfacePlotVTK::backgroundAct [protected]

Change background colour?

Definition at line 323 of file DGVSurfacePlotVTK.h.

DGVBlitzArrayCasterVTK<imageType> DGVSurfacePlotVTK::Blitz [protected]

For casting Blitz arrays to and from VTK structures.

Definition at line 340 of file DGVSurfacePlotVTK.h.

int DGVSurfacePlotVTK::bounds[6] [protected]

Bounds of the data.

Definition at line 337 of file DGVSurfacePlotVTK.h.

QAction* DGVSurfacePlotVTK::closeAct [protected]

Closes window.

Definition at line 335 of file DGVSurfacePlotVTK.h.

bool DGVSurfacePlotVTK::closestTriad [protected]

Flag for closest triad display of axes.

Definition at line 306 of file DGVSurfacePlotVTK.h.

DGVConsole* DGVSurfacePlotVTK::console [protected]

Console for message output.

Definition at line 345 of file DGVSurfacePlotVTK.h.

bool DGVSurfacePlotVTK::consoleAssigned [protected]

Messaging console has been set.

Definition at line 305 of file DGVSurfacePlotVTK.h.

QMenu* DGVSurfacePlotVTK::contextMenu [protected]

Context Menu.

Context Menu

Definition at line 316 of file DGVSurfacePlotVTK.h.

int DGVSurfacePlotVTK::currentSlice [protected]

Slice being showm.

Definition at line 343 of file DGVSurfacePlotVTK.h.

bool DGVSurfacePlotVTK::externalData [protected]

External vtkImageData?

Definition at line 303 of file DGVSurfacePlotVTK.h.

bool DGVSurfacePlotVTK::generated [protected]

Plot has been generated?

Definition at line 301 of file DGVSurfacePlotVTK.h.

vtkImageDataGeometryFilter* DGVSurfacePlotVTK::geometry [protected]

Used to create the geometry for a surface plot.

Definition at line 349 of file DGVSurfacePlotVTK.h.

bool DGVSurfacePlotVTK::loaded [protected]

Data loaded?

Definition at line 300 of file DGVSurfacePlotVTK.h.

vtkLODActor* DGVSurfacePlotVTK::lod [protected]

Definition at line 353 of file DGVSurfacePlotVTK.h.

QAction* DGVSurfacePlotVTK::logAct [protected]

Show logscale?

Definition at line 325 of file DGVSurfacePlotVTK.h.

vtkImageLogarithmicScale* DGVSurfacePlotVTK::logData [protected]

For log scaling.

Definition at line 348 of file DGVSurfacePlotVTK.h.

bool DGVSurfacePlotVTK::logScaled [protected]

Used log scale? (If so, reset scale).

Definition at line 310 of file DGVSurfacePlotVTK.h.

vtkPolyDataMapper* DGVSurfacePlotVTK::mapper [protected]

Map the data to the surface.

Definition at line 352 of file DGVSurfacePlotVTK.h.

QString DGVSurfacePlotVTK::name [protected]

Name of the plot.

Definition at line 313 of file DGVSurfacePlotVTK.h.

QAction* DGVSurfacePlotVTK::pauseAct [protected]

Pause Animation for 3D datasets.

Definition at line 330 of file DGVSurfacePlotVTK.h.

bool DGVSurfacePlotVTK::pausedAnimation [protected]

Animation is paused?

Definition at line 312 of file DGVSurfacePlotVTK.h.

Array<imageType,2> DGVSurfacePlotVTK::plotArray [protected]

Plot data in array form.

Definition at line 341 of file DGVSurfacePlotVTK.h.

vtkImageData* DGVSurfacePlotVTK::plotData [protected]

Actual data stored as using an image geometry.

Definition at line 339 of file DGVSurfacePlotVTK.h.

QAction* DGVSurfacePlotVTK::refreshAct [protected]

Refreshes window.

Definition at line 333 of file DGVSurfacePlotVTK.h.

QAction* DGVSurfacePlotVTK::renameAct [protected]

Renames window.

Definition at line 334 of file DGVSurfacePlotVTK.h.

vtkRenderer* DGVSurfacePlotVTK::renderer [protected]

Renderer of the plot.

Definition at line 356 of file DGVSurfacePlotVTK.h.

vtkRenderWindow* DGVSurfacePlotVTK::renderWin [protected]

Window that controls the renderer.

Definition at line 357 of file DGVSurfacePlotVTK.h.

QAction* DGVSurfacePlotVTK::saveAct [protected]

Saves data as VTI file.

Definition at line 332 of file DGVSurfacePlotVTK.h.

QAction* DGVSurfacePlotVTK::scaleAct [protected]

Action object for scaling plot.

Definition at line 317 of file DGVSurfacePlotVTK.h.

double DGVSurfacePlotVTK::scaling [protected]

Scaling factor.

Definition at line 338 of file DGVSurfacePlotVTK.h.

QAction* DGVSurfacePlotVTK::startAct [protected]

Start Animation for 3D datasets.

Definition at line 329 of file DGVSurfacePlotVTK.h.

vtkPolyDataNormals* DGVSurfacePlotVTK::surfaceNormals [protected]

Normals for the mesh.

Definition at line 351 of file DGVSurfacePlotVTK.h.

QAction* DGVSurfacePlotVTK::thresholdAct [protected]

Action object for thresholding plot.

Definition at line 318 of file DGVSurfacePlotVTK.h.

bool DGVSurfacePlotVTK::thresholded [protected]

Thresholded data?

Definition at line 308 of file DGVSurfacePlotVTK.h.

ThresholdForm* DGVSurfacePlotVTK::thresholder [protected]

Threshold form.

Definition at line 346 of file DGVSurfacePlotVTK.h.

QAction* DGVSurfacePlotVTK::triadAct [protected]

Show triad axes?

Definition at line 326 of file DGVSurfacePlotVTK.h.

bool DGVSurfacePlotVTK::verboseMode [protected]

Verbose messaging mode.

Definition at line 304 of file DGVSurfacePlotVTK.h.

Array<imageType,3>* DGVSurfacePlotVTK::volumeData [protected]

Pointer to volume array, used for animations.

Definition at line 342 of file DGVSurfacePlotVTK.h.

vtkWarpScalar* DGVSurfacePlotVTK::warp [protected]

Surface quantifier.

Definition at line 350 of file DGVSurfacePlotVTK.h.

QAction* DGVSurfacePlotVTK::xLabelAct [protected]

Change x label.

Definition at line 320 of file DGVSurfacePlotVTK.h.

QAction* DGVSurfacePlotVTK::yLabelAct [protected]

Change y label.

Definition at line 321 of file DGVSurfacePlotVTK.h.

QAction* DGVSurfacePlotVTK::zLabelAct [protected]

Change z label.

Definition at line 322 of file DGVSurfacePlotVTK.h.

The documentation for this class was generated from the following files:

include/DGVSurfacePlotVTK.h
src/DGVSurfacePlotVTK.cpp

DGVSurfacePlotVTK Class Reference

Public Slots

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
